STAINLESS STEEL SHANK • With Barb
Our Stainless Steel Shanks are machined as a solid single piece to add strength and reduce play when assembled to a faucet. This shank fits standard North American faucets and has a barbed end for 1/4″ ID tube to fasten to.
DETAILS
Material • 304 stainless steel
Finish • Machined
Thread • 5/8″ thread, 35mm long
Spline • Standard North American 60 point spline
Centre bore • 4.75mm dia. with 1/4″ barb at back
IMAGE GALLERY (click image to enlarge)

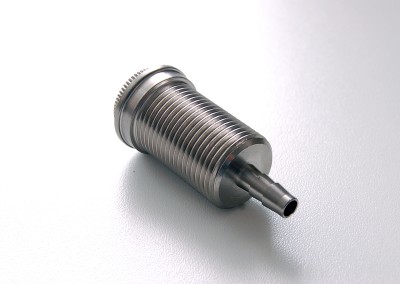

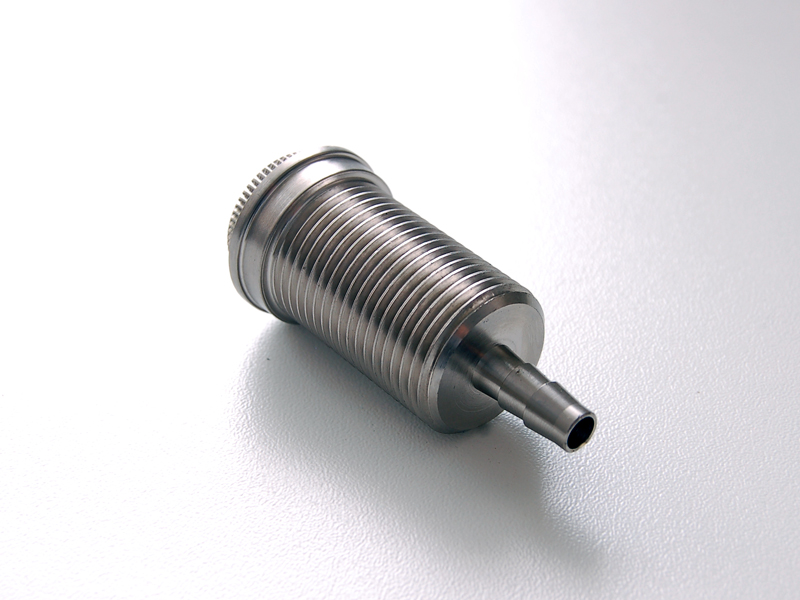

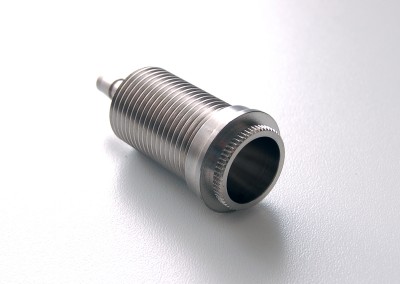

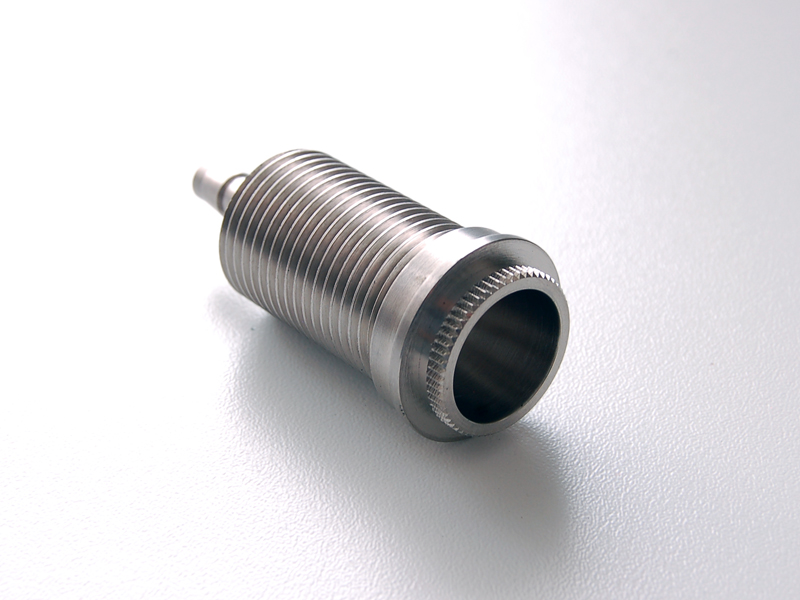

Stainless Steel 5/8 x 35mm shank with barb 1
